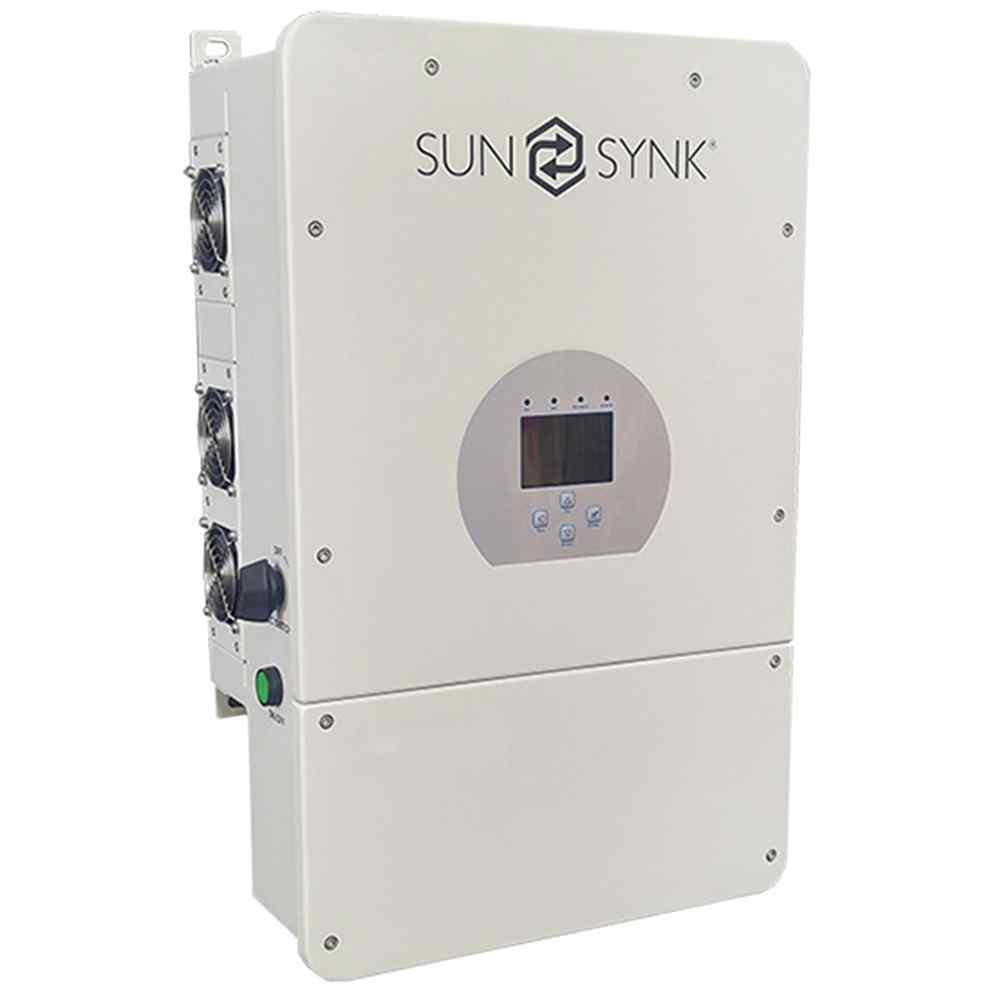

Sunsynk 8.8kW Solar Hybrid Inverter Single Phase

Details

Description

Max PV Power: 10400W Rated DC Power: 8000W Max DC Voltage: 500V MPPT Voltage Range: 125~425V Starting Voltage: 150V MPPT Input Lines: 2+2 Battery Type: Lead-Acid or Li-ion Battery Battery Rated Voltage: 48V Rated AC/DC & Reserve Power: 8800W Max AC Power: 8000W Peak Power (Off-Grid): 1.5 Times Rated Power,10s AC Output Range: 230Vac Off-Grid Output: 45~55H/55~65Hz 180~270Vac 230Vac ±2% Communication with BMS: RS485; CANBUS Protection Degree: IP65 Installation Style: Wall-mounted220V single phase, pure sine wave inverter • Self consumption & feed-in to the grid • Auto re-start while AC is recovering • Programmable supply priority for battery or grid • Programmable multiple operation modes; on-grid / off-grid & UPS • Configurable battery charging – current / voltage based on applications by LCD setting • Configurable AC / solar / generator charger priority by LCD setting • Compatible with mains voltage or generator power • Overload / over-temperature / short-circuit protection • Smart battery charger designer optimised battery protection • Limit-function installed to prevent excess power overflow to grid • Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers • Smart settable 3-stage MPPT charging for optimised battery performance • Time of use function• Smart load function

Brand

GeoSolar
