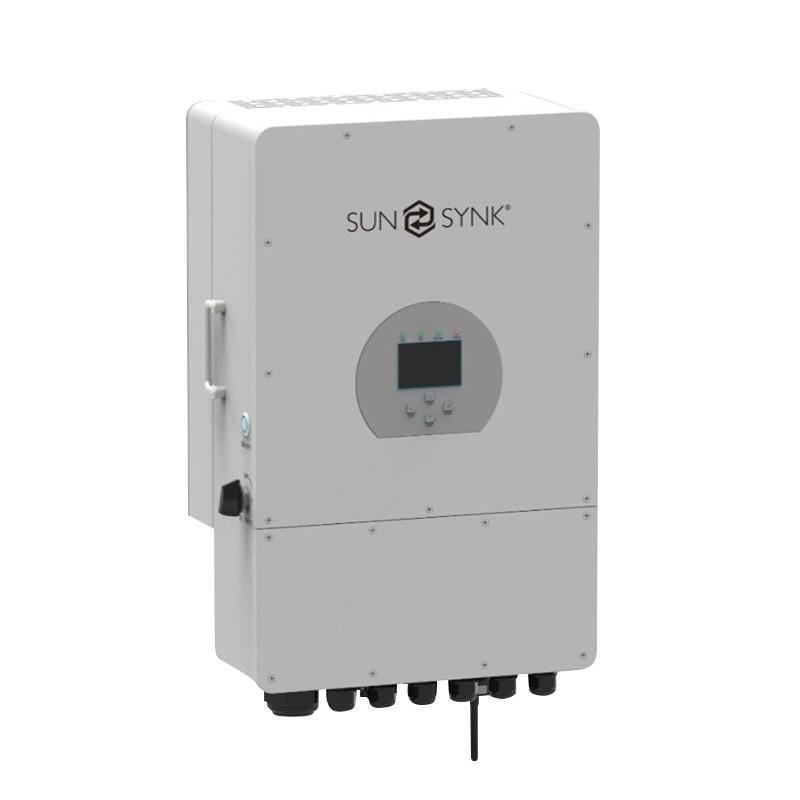

SUNSYNK 12kW Hybrid Inverter (3 Phase)

Details

Description

Description SUNSYNK 12kW Hybrid Inverter (3 Phase) – SUN-12K-SG04LP3 Model SUN-12K-SG04LP3 Wi-Fi Ready – works via Sunsynk App. Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App. The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool. Manages Power Flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require. Easy & Simple to Understand LCD Display. Wi-Fi & GSM monitoring supported. Equipped with Visual power flow screen. Built-In 2 strings for 1 MPP tracker & 1 string for 1 MPP tracker. Smart settable 3-stage MPPT charging – optimised battery performance. Auxiliary load function. Parallel (coming soon)/multi-inverter function – grid-tied & off-grid. 230V/400V Three-Phase Pure Sinewave Inverter. Grid Type: Three Phase. Protection Degree: IP65 Noise Level: <30dB Maximum Charge & Discharge Current: 240A Battery Charging Strategy: Self-Adaptation to BMS Maximum DC Input Power: 15000W MPPT Range: 140-800V Start-up Voltage: 160V AC Output & UPS Power: 12000W Maximum AC Power: 13200W AC Output Rated Current: 17.4A Maximum AC Output Current: 19.1A Maximum Efficiency: 97.60% MPPT Efficiency: 97.0% Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately) Battery Voltage Range: 40-60V Communication with BMS: CAN/RS485 Fan Cooling Operation Temperature: -25°C to 60°C Installation Type: Wall Mounted. Weight: 45Kg Dimensions (L x W x H): 673 x 462 x 265 mm

Brand

GeoSolar
